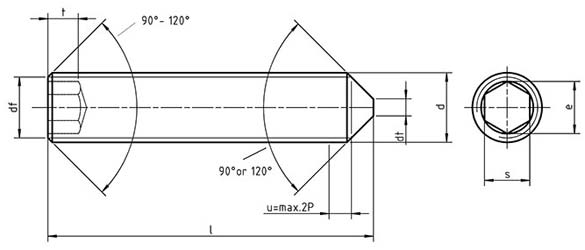

DIN 914 Hexagon Socket Set Cap Screws with cone point

DIN 914 Hexagon Socket Set Cap Screws With Cone Point Dimensions

Thread d p df dt e s t
approx. max min min nominal min max min min
M1.4 0.3   - - 0.803 0.7 0.711 0.724 0.6 1.4
M1.6 0.35   - - 0.803 0.7 0.711 0.724 0.7 1.5
M1.8 0.35   - - 0.803 0.7 0.711 0.724 0.8 1.6
M2 0.4   - - 1.003 0.9 0.889 0.902 0.8 1.7
M2.5 0.45   - - 1.427 1.3 1.27 1.295 1.2 2
M3 0.5   - - 1.73 1.5 1.52 1.545 1.2 2
M4 0.7   - - 2.3 2 2.02 2.045 1.5 2.5
M5 0.8   - - 2.87 2.5 2.52 2.56 2 3
M6 1   1.5 0.9 3.44 3 3.02 3.08 2 3.5
M8 1.25   2 1.4 4.58 4 4.02 4.095 3 5
M10 1.5   2.5 1.9 5.72 5 5.02 5.095 4 6
M12 1.75   3 2.4 6.86 6 6.02 6.095 4.5 8
M14 2   4 3.25 6.86 6 6.02 6.095 5.6 9
M16 2   4 3.25 9.15 8 8.025 8.115 6.4 10
M18 2.5   5 4.25 11.43 10 10.025 10.115 7.2 11
M20 2.5   5 4.25 11.43 10 10.025 10.115 8 12
M22 2.5   6 5.25 13.72 12 12.032 12.142 9 13.5
M24 3   6 5.25 13.72 12 12.032 12.142 10 15
