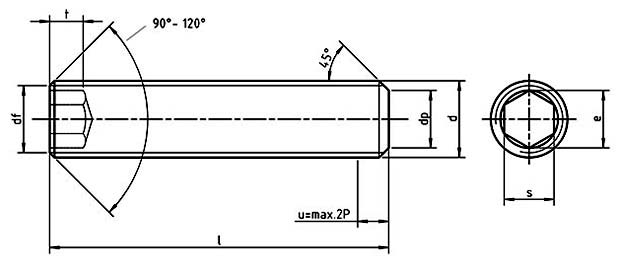

DIN 913 Hexagon Socket Set Cap Screws with flat point

DIN 913 Hexagon Socket Set Cap Screws with flat point Dimenions

Thread d p df dp e s t
approx. max min min nominal min max min min
M1.4 0.3   0.7 0.45 0.803 0.7 0.711 0.724 0.6 1.4
M1.6 0.35   0.8 0.55 0.803 0.7 0.711 0.724 0.7 1.5
M1.8 0.35   0.9 0.65 0.803 0.7 0.711 0.724 0.8 1.6
M2 0.4   1 0.75 1.003 0.9 0.889 0.902 0.8 1.7
M2.5 0.45   1.5 1.25 1.427 1.3 1.27 1.295 1.2 2
M3 0.5   2 1.75 1.73 1.5 1.52 1.545 1.2 2
M4 0.7   2.5 2.25 2.3 2 2.02 2.045 1.5 2.5
M5 0.8   3.5 3.2 2.87 2.5 2.52 2.56 2 3
M6 1   4 3.7 3.4 3 3.02 3.08 2 3.5
M8 1.25   5.5 5.2 4.58 4 4.02 4.095 3 5
M10 1.5   7 6.64 5.72 5 5.02 5.095 4 6
M12 1.75   8.5 8.14 6.86 6 6.02 6.095 4.8 8
M14 2   10 9.64 6.86 6 6.02 6.095 5.6 9
M16 2   12 11.57 9.15 8 8.025 8.115 6.4 10
M18 2.5   13 12.57 11.43 10 10.025 10.115 7.2 11
M20 2.5   15 14.57 11.43 10 10.025 10.115 8 12
M22 2.5   17 16.57 13.72 12 12.032 12.142 9 13.5
M24 3   8 17.57 12 12 12.032 12.142 10 15
