Inconel 718 Hex Flange Screws to ISO 4162 Hex Flange Screw

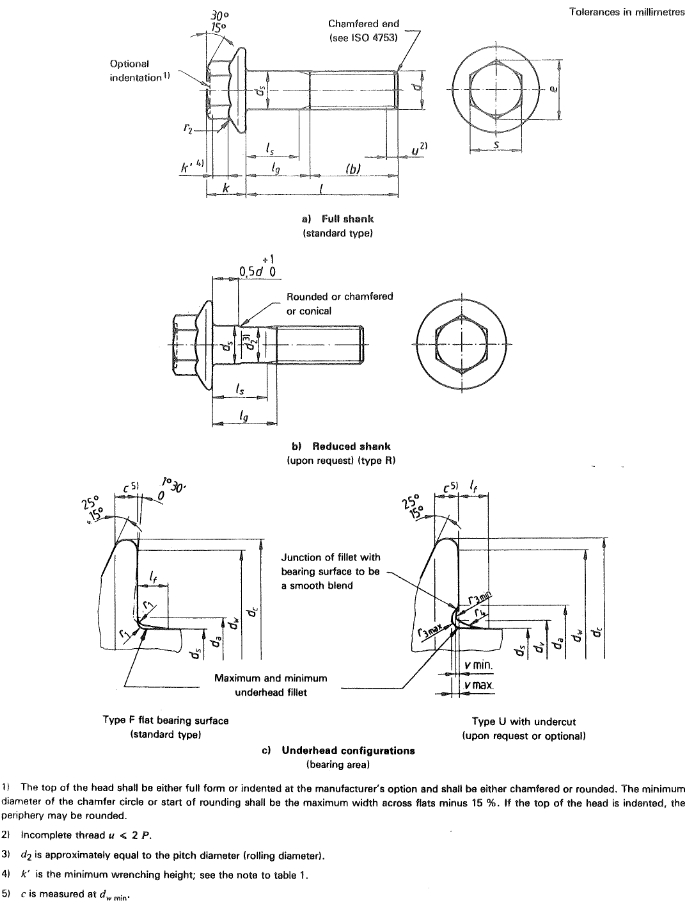

ISO 4162 Hex Flange Screw

ISO 4162 Hex Flange Screw Dimension

Dimension in Millimeters

Thread (d)			M5		M6		M8		M10		M12		(M14)¹⁾		M16
p²⁾			0.8		1		1.25		1.5		1.75		2		2
b ref.		3)	16		18		22		26		30		34		38
		4)	--		--		28		32		36		40		44
		5)	--		--		--		--		--		--		--
c		min.	1		1.1		1.2		1.5		1.8		2.1		2.4
d_a	Type F U	max.	5.7		6.8		9.2		11.2		13.7		15.7		17.7
d_a	Type F U	max.	6.2		7.5		10		12.5		15.2		17.7		20.5
d_c		max.	11.4		13.6		17		20.8		24.7		28.6		32.8
d_s		max.	5.00		6.00		8.00		10.00		12.00		14.00		16.00
d_s		min.	4.82		5.82		7.78		9.78		11.73		13.73		15.73
d_v		max.	5.5		6.6		8.8		10.8		12.8		14.8		17.8
d_w		min.	9.4		11.6		14.9		18.7		22.5		26.4		30.6
e		min.	7.44		8.56		10.8		14.08		16.32		19.68		22.58
k		max.	5.6		6.8		8.5		9.7		11.9		12.9		15.1
k^'		min.	2.3		2.9		3.8		4.3		5.4		5.6		6.7
l_f		max.	1.4		1.6		2.1		2.1		2.1		2.1		3.2
r₁		min.	0.2		0.25		0.4		0.4		0.6		0.6		0.6
r2⁶⁾		max.	0.3		0.4		0.5		0.6		0.7		0.9		1
r₃		max.	0.25		0.26		0.36		0.45		0.54		0.63		0.72
r₃		min.	0.10		0.11		0.16		0.20		0.24		0.28		0.32
r₄		ref.	4		4.4		5.7		5.7		5.7		5.7		8.8
s		max.	7.00		8.00		10.00		13.00		15.00		18.00		21.00
s		min.	6.64		7.64		9.64		12.57		14.57		17.57		20.16
v		max.	0.15		0.20		0.25		0.30		0.35		0.45		0.50
v		min.	0.05		0.05		0.10		0.15		0.15		0.20		0.25
l^{7), 8)}			l_s and l_g⁹⁾
nom.	min.	max.	l_s min.	l_g min.	l_s min.	l_g min.	l_s min.	l_g min.	l_s min.	l_g min.	l_s min.	l_g min.	l_s min.	l_g min.	l_s min.	l_g min.
10	9.71	10.29	-- -- --	-- -- --	-- --	-- --	--	--
12	11.65	12.35
16	15.65	16.35
20	19.58	20.42	--	--	-- --	-- --	-- -- --	-- -- --	-- -- --	-- -- --	-- --	-- --	--	--
25	24.58	25.42	5	9	-- --	-- --
30	29.58	30.42	10	14	7	12
35	34.5	35.5	15 20 25	19 24 29	12 17 22	17 22 27	6.75	13	--	--	-- --	-- --	-- -- --	-- -- --	-- -- --	-- -- --
40	39.5	40.5					11.75 16.75	18 23	6.5	14	-- --	-- --
45	44.5	45.5					11.75 16.75	18 23	11.5	19	6.25	15
50	49.5	50.5	30	34	27 32 37	32 37 42	21.75 26.75 31.75	28 33 38	16.5 21.5 26.5	24 29 34	11.25 16.25 21.25	20 25 30	6	16	--	--
55	54.4	55.6											11 16	21 26	7	17
60	59.4	60.6											11 16	21 26	12	22
65	64.4	65.6					36.75 41.75 51.75	43 48 58	31.5 36.5 46.5	39 44 54	26.25 31.25 41.25	35 40 50	21 26 36	31 36 46	17 22 32	27 32 42
70	69.4	70.6
80	79.4	80.6
90	89.3	90.7							56.5 66.5	64 74	51.25 61.25 71.25	60 70 80	46 56 66	56 66 76	42 52 62	52 62 72
100	99.3	100.7
110	109.3	110.7
120	119.3	120.7									81.25	90	76 80 90	86 90 100	72 76 86	82 86 96
130	129.2	130.8
140	139.2	140.8
150	149.2	150.8													96 106	106 116
160	159.2	160.8													96 106	106 116
1) The size in parentheses should be avoided if possible. 2) P pitch of the thread. 3) For lengths l_nom 125 mm. 4) For lengths 125 mm < l_nom < 200 mm. 5) For lengths l_nom > 200 mm. 6) Radius r₂ applies both at the corners and at the flats of the hexagon. 7) Screws with lengths shown above the continuous thick line are threaded to head. 8) Reduced shank type (type R) only below the dashed thick line. 9) l_g is the minimum grip length. NOTE If the product passes the gauging in annex A, the requirements for dimensions e and k' are satisfied.
